Piezomed Spisser

The W&H Piezomed instrument range includes different instruments for bone surgery, periodontology and extraction, for retrograde endodontics and for lateral sinus lift.

As soon as an instrument is inserted, Piezomed automatically detects the instrument and assigns it to the correct power class. This not only facilitates operation but also increases safety. In addition, the risk of overloading the instruments is reduced and the service life of your instruments considerably extended!

Instruments for Bone Surgery

B1 (REF 05530100)

Fine-toothed saw for fine cuts, with little bone loss when harvesting bone blocks.

B2R, B2L (REF 06958600, 05544400)

Fine-toothed instrument for horizontal cuts, with little bone loss, in hard-to-reach areas. Right-curved and left-curved models available.

B3 (REF 05542100)

Sharp instrument for modelling and contouring the bone surface, as well as for collecting bone chips.

B4 (REF 05543800)

Sharp chisel for splitting the alveolar ridge.

B5 (REF 05534500)

Sharp scraper for collecting bone chips and detaching bone flaps.

B6, B7 (REF 07022500, 07022600)

Special saw for fine and deep cuts in record time. Especially suitable for harvesting bone blocks, splitting the alveolar ridge, separating tooth roots and for root-tip resections.

Instruments for Periodontology and Extraction

P1 (REF 06067700)

For removing concretions in the subgingival region. Ideal for treatment of deep, periodontal pockets.

P2RD (REF 06061700)

Right-curved, diamond-coated tip for periodontal debridement. Especially suitable for open root planing.

P2LD (REF 06061800)

Left-curved, diamond-coated tip for periodontal debridement. Especially suitable for open root planing.

EX1 (REF 06069300)

Instrument for atraumatic tooth extraction to preserve the alveolar bone.

EX2 (REF 06071100)

Instrument for atraumatic tooth extraction to preserve the alveolar bone.

Instruments for Retrograde Endodontics

R1D (REF 05975200)

Straight, diamond-coated instrument for retrograde root canal preparation.

R2RD (REF 05991000)

Slightly right-curved, diamond-coated instrument for retrograde root canal preparation.

R2LD (REF 05999400)

Slightly left-curved, diamond-coated instrument for retrograde root canal preparation.

R3D (REF 05998800)

Angled, diamond-coated instrument for retrograde root canal preparation.

R4RD (REF 06005000)

Strongly right-curved, diamond-coated instrument for retrograde root canal preparation.

R4LD (REF 06004700)

Strongly left-curved, diamond-coated instrument for retrograde root canal preparation.

Instruments for Lateral Sinus Lift

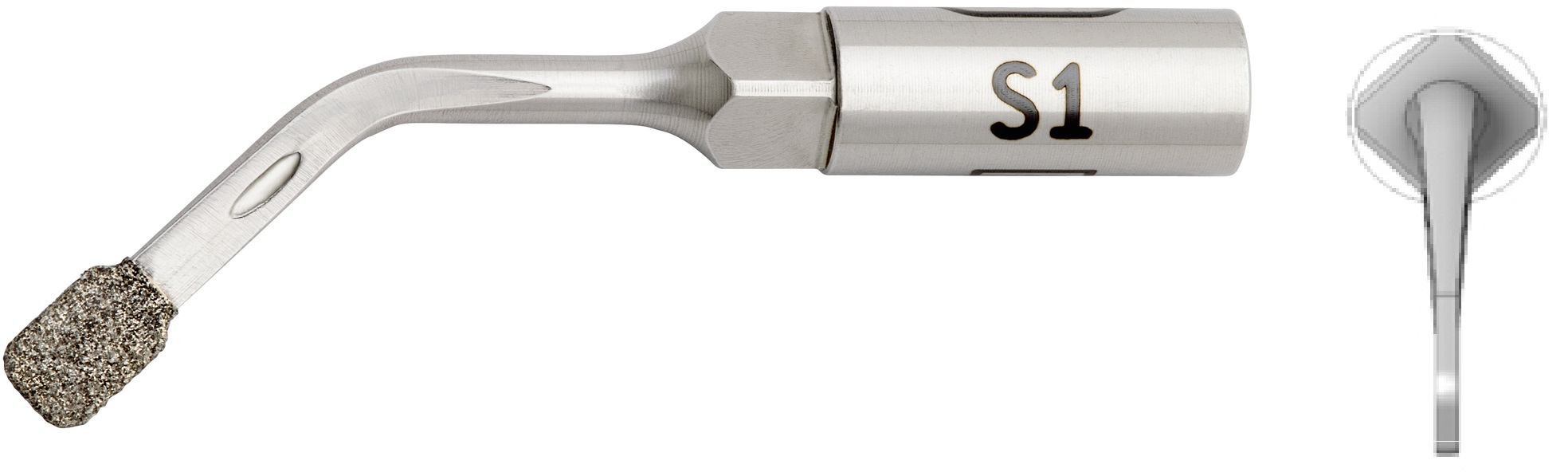

S1 (REF 05542900)

Diamond-coated instrument for preparation of a bone flap for lateral sinus floor augmentation and for crown edge extensions.

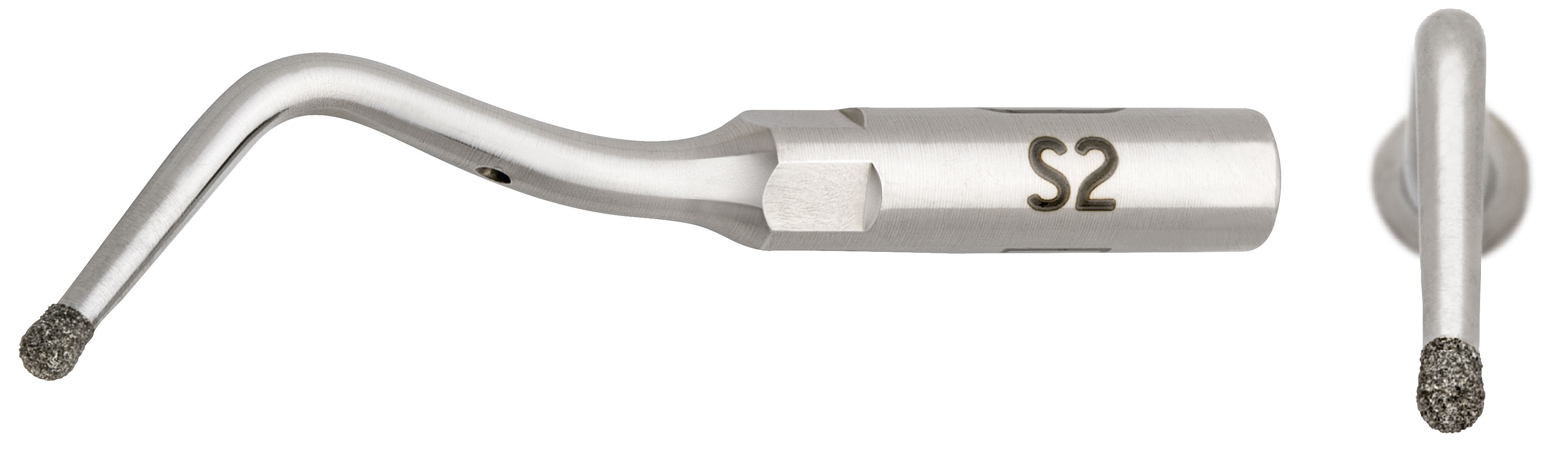

S2 (REF 05534700)

Instrument with diamond-coated ball for preparation of a bone flap for lateral sinus floor augmentation and for crown edge extensions.

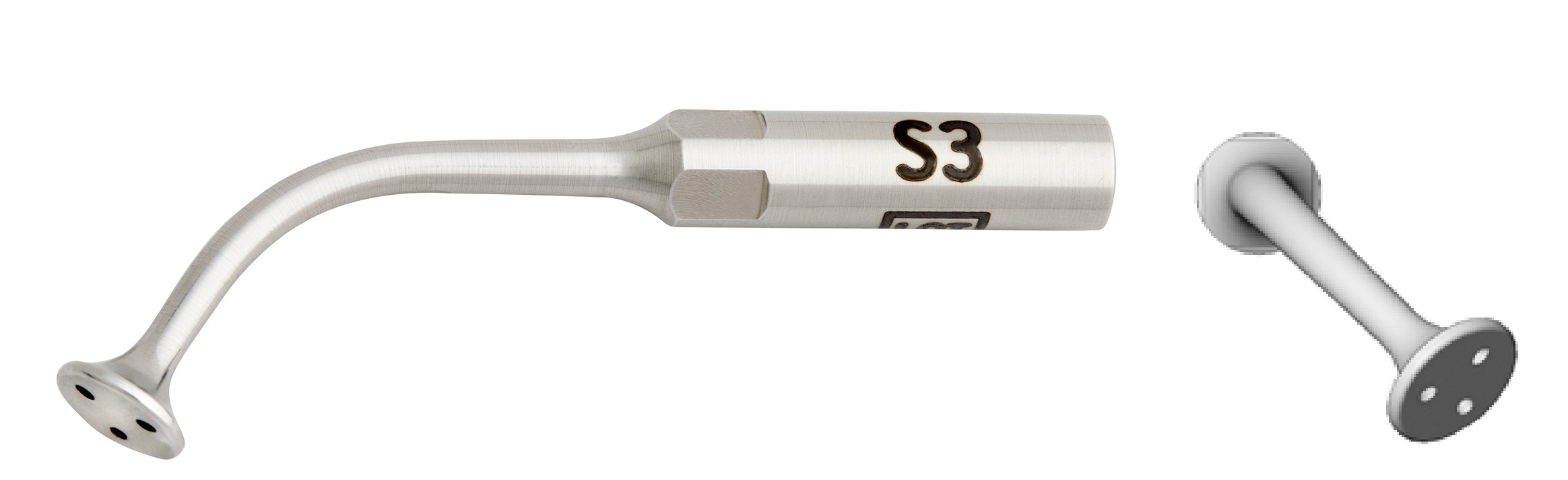

S3 (REF 05508200)

Instrument for gentle detachment of the Schneiderian membrane from the bone. The coolant film protects the Schneiderian membrane by means of three coolant openings.
